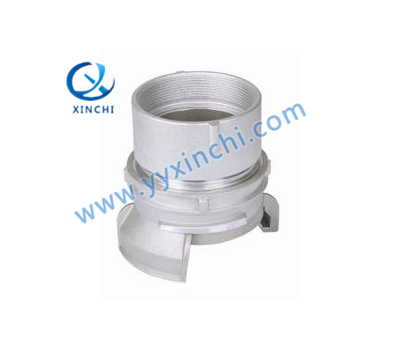

aluminium guillemin coupling female with latch

Product Details:

Guillemin Coupling

-Female with latch

1. Guillemin coupling is a symmetrical system and adapted for a large field of applications.

2. Guillemin couplings are all made of high quality raw material by our factory.

3. We can also make the couplings by the customer’s design to fit their requirements.

4. Our couplings are widely used in chemical, mining, fire-fighting, agriculture , pharmaceutical, tank car , oil storage , shipping and other field.

5. We supply high quality couplings and good service to our clients.



DN              SIZE            PART NO.

40              1-1/2”         XC-GUL016-AL

50                2”          XC-GUL017-AL

65              2-1/2”         XC-GUL018-AL

80                3 ”          XC-GUL019-AL

100               4 ”          XC-GUL020-AL





Standard:

-EN 14420-8/NF E29-572

Casting Method: -Gravity casting or Precision casting (sillca sol)

Size : -From DN40(1-1/2”) to DN100 (4”)

Material : -Coupling: Aluminium heat treated , SS316 or Brass

Seal material:  -NBR, EPDM, FPM, PTFE

Thread:  BSP

Surface Treatment:  Polishing or sand-blast

Working pressure:   16 bar/230psi

Test pressure:   30 bar/435psi

Minimum burst pressure:   50 bar /725psi
