PVC LAYFLAT HOSES
PVC LAYFLAT HOSE

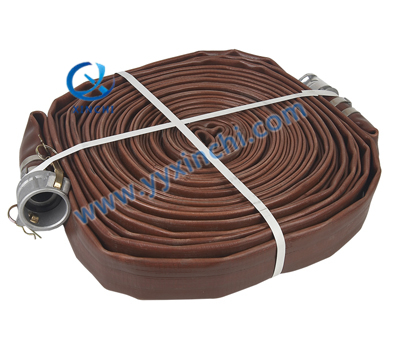

XINCHI's PVC Layflat hose is made by strong PVC that coated with synthetic fiber on both sides.
PVC Layflay hose has many advantages, such as anti-freezing, anti-pressure, anti-corrosion, easy to
move and fold, and long working life.
PVC Layflay hose works better when combined with C+E or Pin Lug. It is suitable for farm, grassland,
garden, drought and flood fighting, oil field, mine and construction site.
PVC layflat hose could be assembled with BAUER MALE AND FEMALE, CAMLOCK C AND E,
PIN LUG MALE AND FEMALE.
Specification or logo stamp at end of layflat hose free of charge
lMade of high quality PVC
lColor (Blue/Red/Brown/Green/Orange/Grey/Black)
lWorking Pressure (2bar-10bar)
lSize 1" to 10"
lWorking Temperature: -5°C~65°C
|
Size |
Working Pressure |
Burst Pressure |
Length |
|
|
(Inch/mm) |
(Bar) |
(Bar) |
(FT) |
|
|
1" |
25 |
2/3/4/6/8/10 |
6/9/12/18/24/30 |
25/50/100 |
|
1-1/4" |
32 |
2/3/4/6/8/10 |
6/9/12/18/24/30 |
25/50/100 |
|
1-1/2" |
38 |
2/3/4/6/8/10 |
6/9/12/18/24/30 |
25/50/100 |
|
2" |
51 |
2/3/4/6/8/10 |
6/9/12/18/24/30 |
25/50/100 |
|
2-1/2" |
64 |
2/3/4/6/8/10 |
6/9/12/18/24/30 |
25/50/100 |
|
3" |
76 |
2/3/4/6/8 |
6/9/12/18/24 |
25/50/100 |
|
4" |
102 |
2/3/4/6/8 |
6/9/12/18/24 |
25/50/100 |
|
5" |
125 |
2/3/4/6/8 |
6/9/12/18/24 |
25/50/100 |
|
6” |
150 |
2/3/4/6/8 |
6/9/12/18/24 |
25/50/100 |
|
8” |
200 |
2/4/6 |
6/9/12 |
25/50/100 |
|
10” |
250 |
2/4/6 |
6/9/12 |
25/50/100 |
